High Precision DX5 Head | Epson

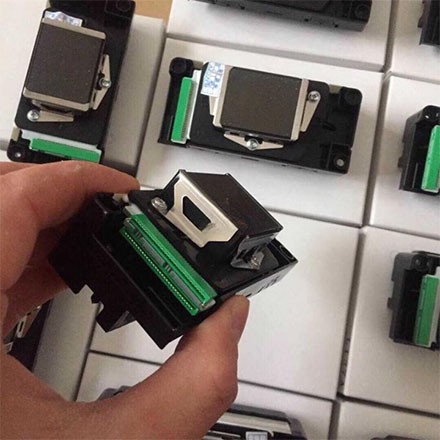

The Epson DX5 head is well-known in the printing industry for its high precision and stability. It is widely used in eco-solvent printers, UV flatbed printers, and textile printing equipment. Below is detailed information to help you make an informed purchase decision:

1. Print Head Types and Versions

The DX5 print head is available in several versions:

Water-based Version: Suitable for water-based inks (such as dye and pigment inks), commonly used in photo printers, signage, and graphic printing.

Eco-solvent Version: Compatible with eco-solvent inks, offering better weather resistance, ideal for outdoor advertisements, vehicle wraps, etc.

UV Version: Designed for UV-curable inks, suitable for printing on rigid materials like acrylic, glass, and metal.

Each version differs in internal materials and protective coatings, so ensure you choose the correct one for your printer model and ink type.

2. Print Head Specifications

Nozzle Rows: The DX5 print head features 8 rows of nozzles, with 180 nozzles per row, totaling 1,440 nozzles, ensuring high printing precision.

Maximum Resolution: Supports resolutions up to 1440dpi, delivering sharp and detailed images.

Inkjet Technology: Utilizes piezoelectric technology with precise ink droplet control, supporting Variable Dot technology to enhance image gradation.

3. Key Considerations When Purchasing

Original vs. Compatible/Aftermarket: Original print heads offer better stability and longer lifespan; compatible heads are more affordable but vary in quality depending on the manufacturer.

Production Batch: The DX5 print head’s production date and batch may affect compatibility, so ensure the product suits your printer model.

Print Head Code (FPC Code): Each print head comes with a unique code for data matching — ensure this code is intact when purchasing.

4. Usage and Maintenance

Installation Environment: Install the print head in a clean, dust-free environment to prevent nozzle blockages.

Ink Selection: Use ink recommended by the manufacturer to avoid chemical incompatibility that may damage the print head.

Daily Maintenance: Regularly clean the print head and ink system. If the printer is not in use, perform proper moisture protection to prevent ink from drying and clogging the nozzles.

5. Common Compatible Printer Models

The DX5 print head is widely used in the following equipment (examples):

Photo Printers: Such as domestic eco-solvent printers and some imported brands.

UV Flatbed Printers: Suitable for small to medium-sized UV printing devices.

Textile Printers: Found in some garment direct-to-fabric printing machines.

6. Purchasing Recommendations

Verify Supplier Credentials: Choose reputable suppliers to ensure you’re buying genuine Epson DX5 print heads.

Inspection Reports: Some suppliers provide test reports confirming nozzle integrity and firing conditions.

Warranty and After-Sales Support: Prioritize suppliers offering warranty services to ensure long-term reliability.

If you’d like detailed guidance on installation, compatible equipment, or maintenance tips, feel free to ask!
